Product Name :

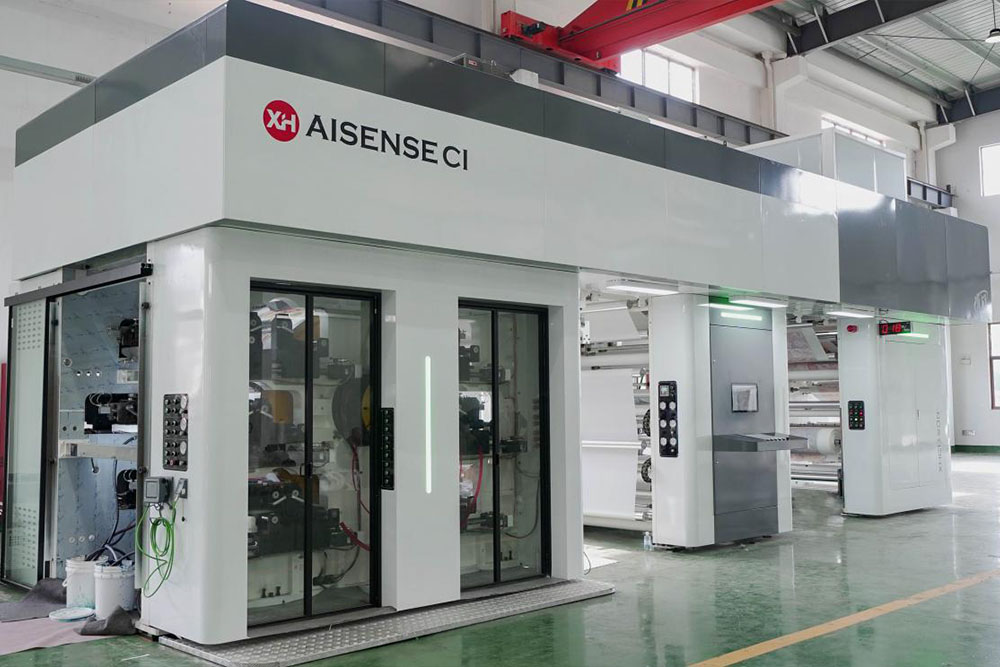

Grearless full servo CI flexo printing machine
Product Catalog:
Central Drum Type Flexo Printing Machine
Contact Detail :
- Phone:+8615355417086(WhatsApp)
- Email:denniswang@xhmachine.com
- Contacts:Dennis Wang
Product Details:
Main features:

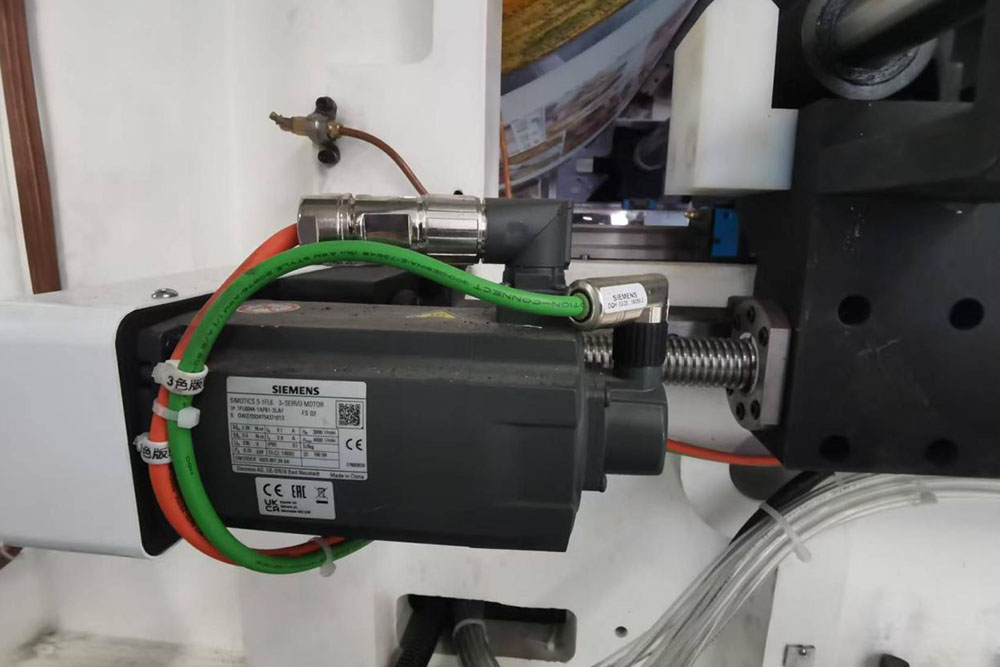

1.Cutting-edge Siemens control system, gearless servo motor drive
2.Printing color: 4, 6, 8, 10 (customized), printing width: 600-2000mm (customized)
3.Printing speed up to 500m/min

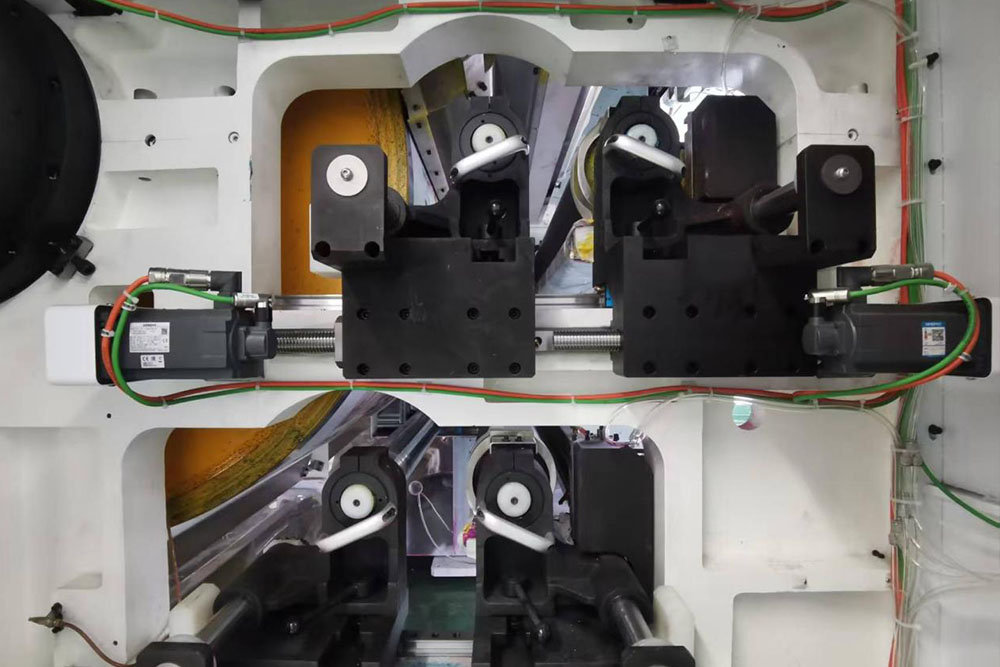

4.Sleeve system for both ceramic anilox roller and plate roller, change 6 printing plate sleeves
spend 5 minutes
5.Central impression cylinder with water cooling system
6.Super stability, central impression cylinder vibrates below 8 microns at the speed of 500m/min.
7.Pre-registration before start up, accuracy +/-1mm. Automatic registration after start up, accuracy +/-0.05mm. Registration accuracy no change when machine speed up or down.
8.Color registration fast, material film waste no more than 10 meters after registration completed (6 color machine).

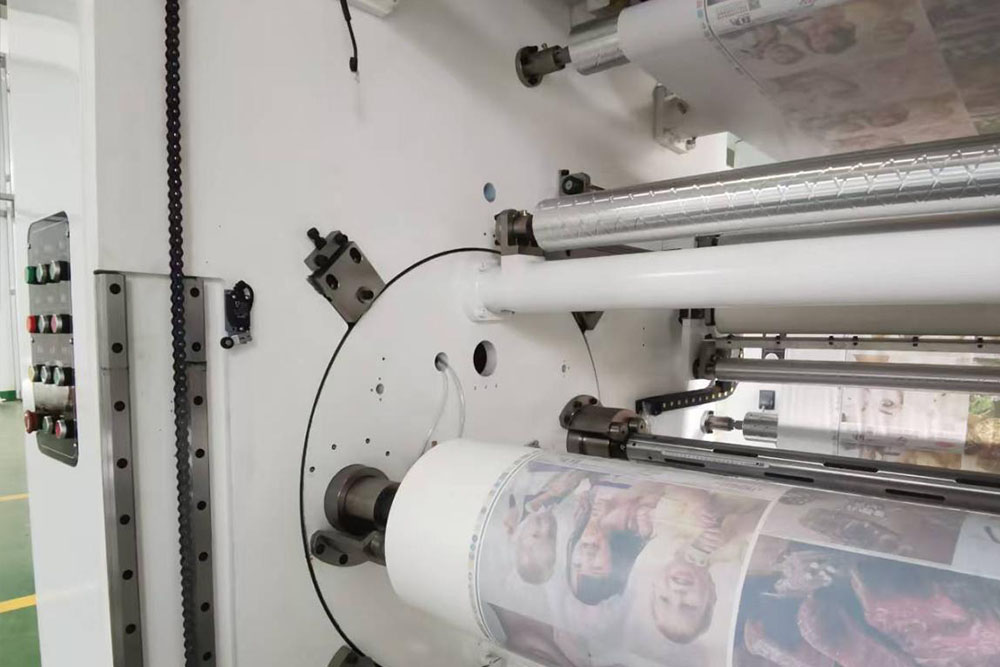

9.Unwinding/rewinding: double station turret-type, with flying splice and automatic reel change, non-stop.
10.Automatic tension control
11.Automatic edge position correction (EPC)
12.Static Image Monitor (view camera)
13.Order manage system
14.Ink viscosity control (optional)
15.On-line defect inspection system (optional)
16.Corona treater (optional)
Workflow:
1.Cutting-edge Siemens control system, gearless servo motor drive
2.Printing color: 4, 6, 8, 10 (customized), printing width: 600-2000mm (customized)
3.Printing speed up to 500m/min
4.Sleeve system for both ceramic anilox roller and plate roller, change 6 printing plate sleeves
spend 5 minutes
5.Central impression cylinder with water cooling system
6.Super stability, central impression cylinder vibrates below 8 microns at the speed of 500m/min.
7.Pre-registration before start up, accuracy +/-1mm. Automatic registration after start up, accuracy +/-0.05mm. Registration accuracy no change when machine speed up or down.
8.Color registration fast, material film waste no more than 10 meters after registration completed (6 color machine).
9.Unwinding/rewinding: double station turret-type, with flying splice and automatic reel change, non-stop.
10.Automatic tension control
11.Automatic edge position correction (EPC)
12.Static Image Monitor (view camera)
13.Order manage system
14.Ink viscosity control (optional)
15.On-line defect inspection system (optional)
16.Corona treater (optional)
Workflow:
Preparation → Pre-registration → Unwinding (double station turret-type, flying splice and automatic reel change, non-stop) → Floating Roll Tension control→ Infeed traction→ Automatic edge position control (EPC) → Auto color registration→ Printing → Drying between printing units → Centralized Drying → Static Image Inspection →Sensor Tension Control → Cooling traction→ Floating Roll Tension control → Automatic edge posisition control (EPC) → Rewinding (double station turret-type, flying splice and automatic reel change, non-stop).
